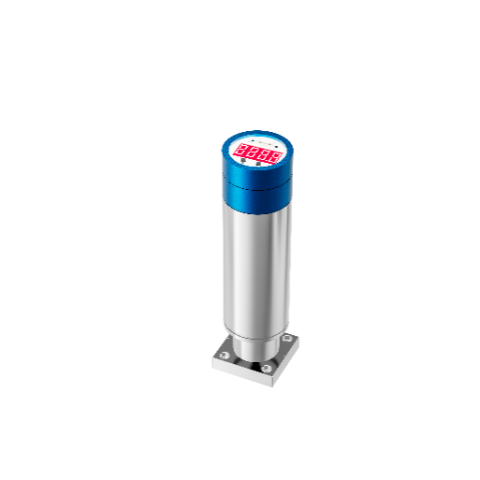

High-Purity Switch-Type Pressure Transmitter
Product Description
This product is a high-purity PFA integrated structure with high reliability, which can be applied to various working conditions of positive and negative pressure; The through flow liquid receiving chamber is designed in a straight through manner, which can effectively avoid stagnant water areas and ensure stability.
Product Description
  • Reliable
    Reliable
    Adopting high-purity PFA integrated molding structure, safe and reliable
  • Design
    Design
    The flow-through liquid receiving chamber is a straight through type to avoid stagnant water areas
  • Acid and alkali resistant
    Acid and alkali resistant
    The sensor adopts ceramic design, and sapphire version can be selected for HF/HCI
  • Connect
    Connect
    Various connection methods available for high-purity PFA material
Technical Specifications
Application
Gauge Pressure, Absolute Pressure, and Negative Pressure Measurement
Measurement Range
-14.7....0....6000psi
Maximum Measurement Deviation
+0.5%FS(<160psi:±0.75%FS)
Overload Pressure
Overload Pressure x3 Rated Pressure
Medium Temperature
-40....125°C
Ambient Temperature
-20....85°C
Average Temperature Coefficient(-20~85℃)
Temperature Coefficient:<0.1%FS/10K; Span:<0.1%FS/10K
Supply Voltage
DC24V(12...32V DC)
Output Signal
4...20mA、0...5V、0..10V、1...5V
Process Connection
9/16-18UNF（1/4"VCR）/W-seal/C-seal
Connection Material
SUS316L VIM/VAR
Diaphragm Material
316L VIM/VAR/Nickel-based Alloy / Hastelloy
Stability
Typical: 0.25%FS/Year
Repeatability
≤0.1%
Zero Point Adjustment
Zero Point Adjustment: -10...+10%
Internal Surface Roughness
Ra:<0.15um
Leakage Rate
≤1X10-10Pa.m³/s
Packaging
Packaging: Double Vacuum Packaging, Compliant with SEMI E49.6
Configuration
Configure the Product
